4-Way Monitoring probes a network in all four traffic directions: inside to inside, inside to outside, outside to inside, and outside to outside. Vergepoints on the LAN and probes in the cloud test each path continuously, so when something breaks, the failing segment is localized instead of argued about.
When something breaks, the LAN blames the ISP, the ISP blames the firewall, and the SaaS vendor blames everyone. Netverge 4-Way Monitoring sees all four directions at once and tells you exactly where the problem is, usually before your user picks up the phone.
“My internet is slow.” That ticket lands in your queue and the clock starts. Most tools send your tech on a hunt. Netverge does that work continuously, in four directions, and correlates the results in real time. By the time the ticket opens, the answer is usually already on the screen.
Most monitoring tools only see traffic from one angle. Netverge sees all four, so issues surface with real-world context, not just device chatter.
Traffic moving between systems and users on the same network.
Example: Spotting LAN slowdowns between a user's workstation and an internal file server.
Traffic leaving your network, headed for the internet, SaaS, or cloud services.
Example: Validating that a user's connection to a cloud app is performing the way it should.
Traffic arriving from the internet, partners, or remote users.
Example: Confirming inbound performance for remote workers connecting back to HQ.
Traffic between external endpoints that affects your services.
Example: Catching upstream ISP or cloud provider issues before your users feel them.
From the Netverge platform
These captures show the reports behind each monitoring perspective. They are collected from separate sensor views and arranged here for comparison. Customer identifiers are anonymized; the interface and measurements are preserved.
Selected platform captures · Click any image to enlarge

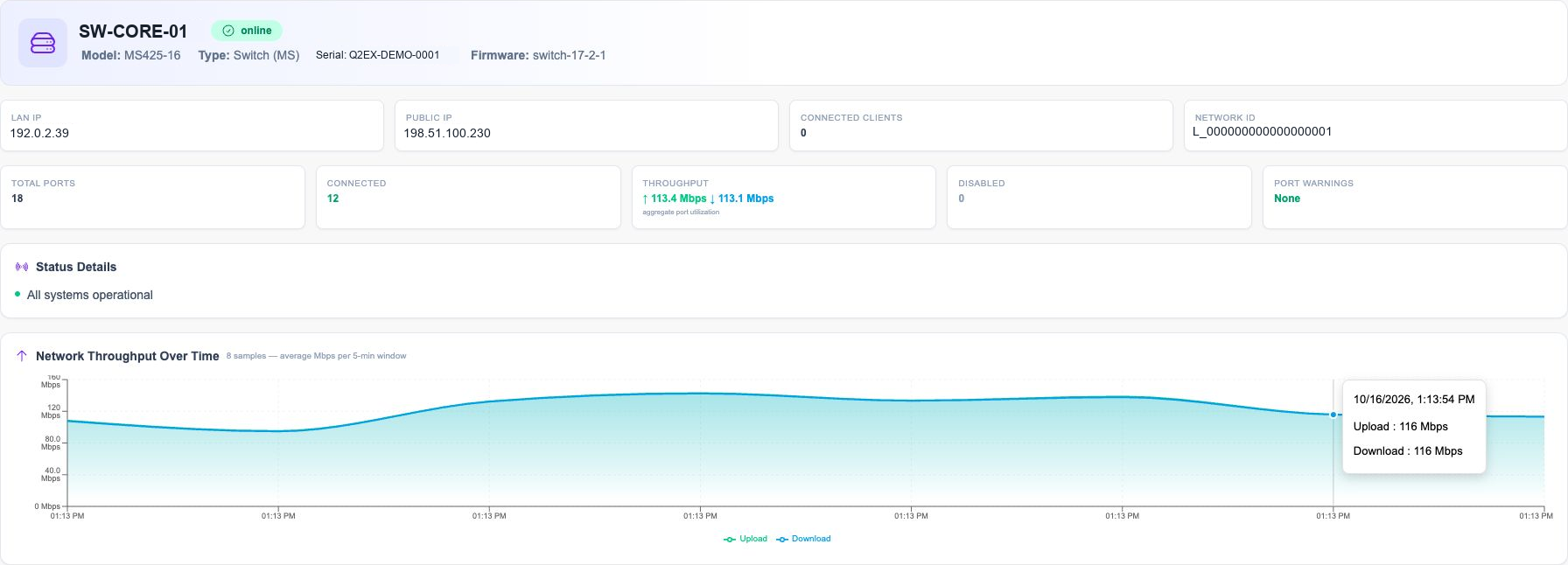

MerakiProbe · Switch monitoring
Switch throughput, connected ports, and port warnings help you investigate the local network before looking upstream.
Actual switch report. The chart shows aggregate port utilization; it does not isolate a workstation-to-server conversation.

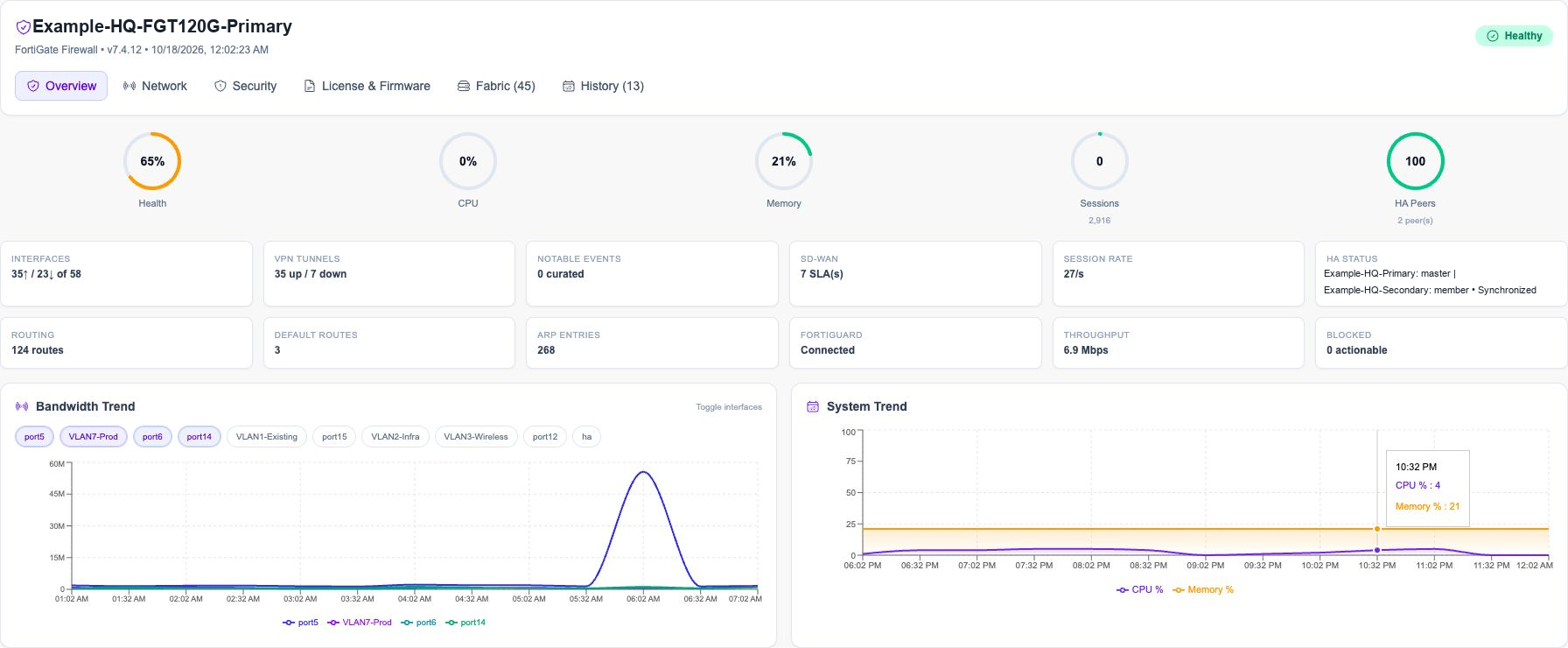

FortiProbe · FortiGate monitoring

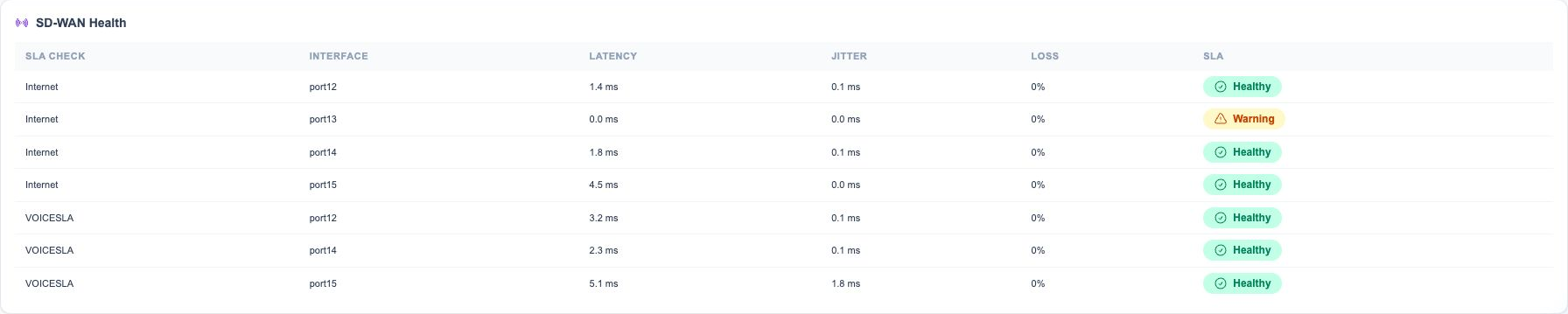

Compare interface bandwidth with firewall load, then inspect the SD-WAN checks for latency, jitter, packet loss, and SLA status.
Actual firewall overview. Measurements cover the monitored interfaces and configured checks.

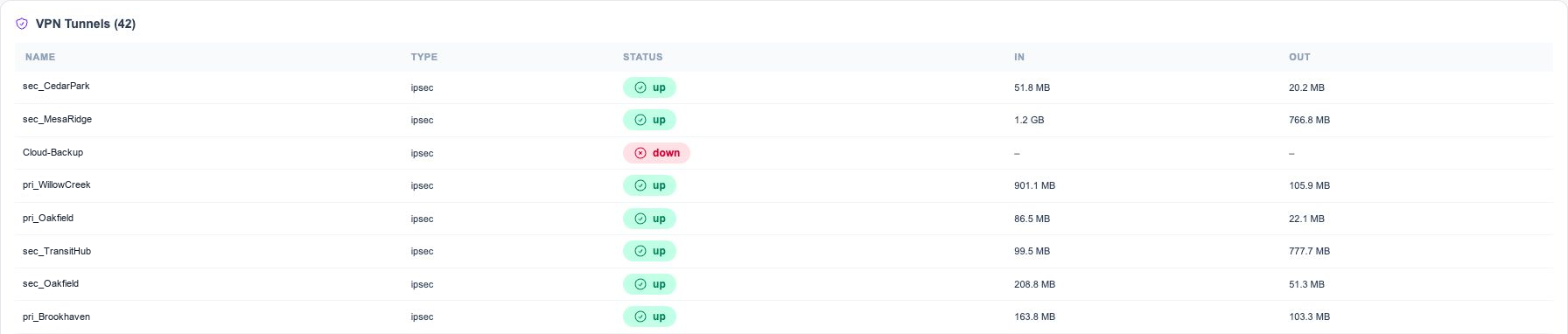

FortiProbe · VPN monitoring
See which IPsec tunnels are up or down and compare their inbound and outbound traffic totals when investigating connectivity between sites or cloud networks.
Eight rows from the actual VPN report. Tunnel names are fictionalized. Traffic totals are not end-to-end application response times.

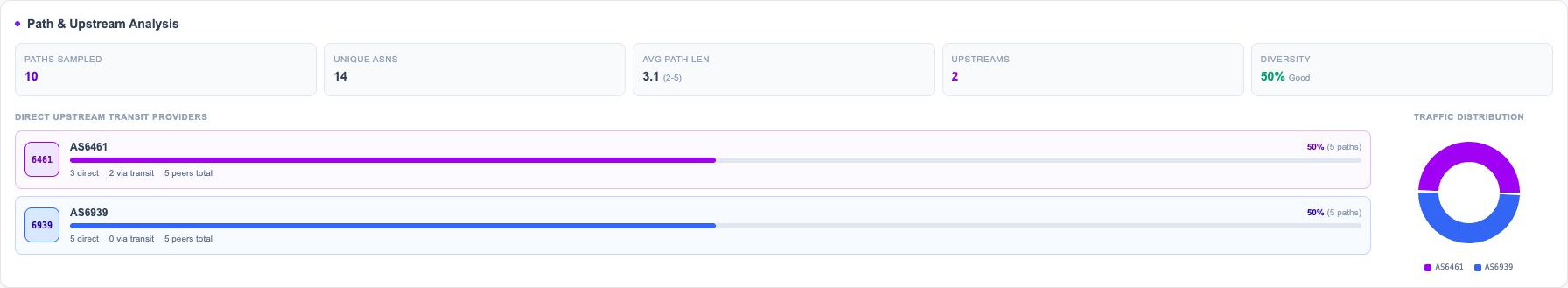

BGPProbe · External routing visibility

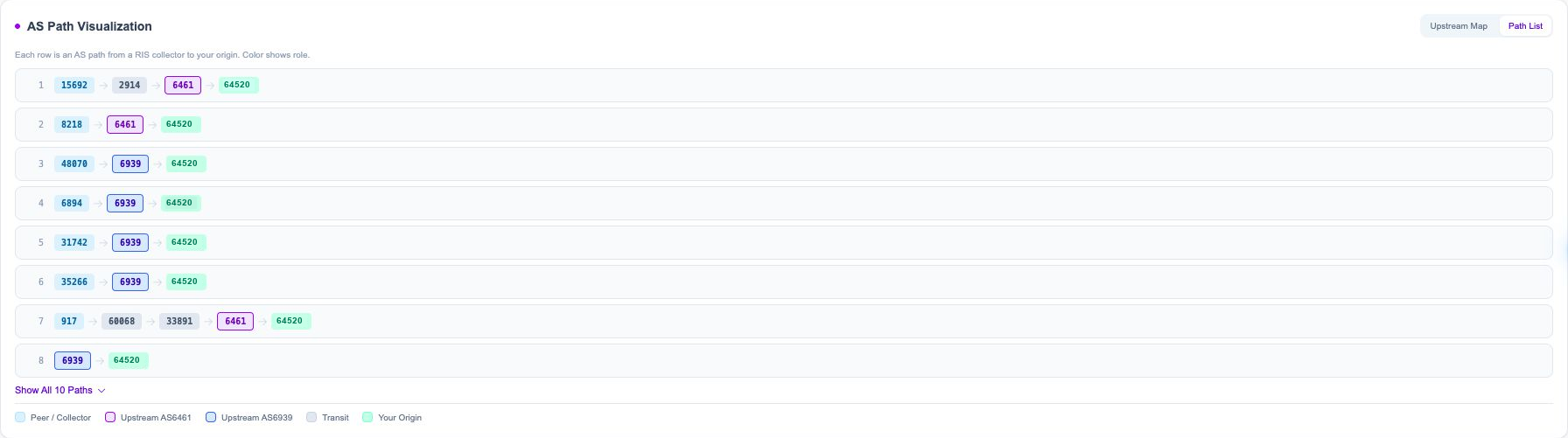

Use public routing observations to inspect upstream providers, sampled AS paths, and route diversity beyond the local network.
Actual BGP report using RIPE RIS observations. Percentages describe sampled route paths, not measured bandwidth or SaaS response time.
This is a collection of actual sensor reports, not a single four-way dashboard. Available views and measurements depend on your devices, sensors, and probe placement.
Four streams of telemetry are useful. Four streams correlated into one view are decisive. Netverge automatically links every signal to the right client, site, service, and asset, then time-aligns the data so a spike on one path lines up with the dip on another.
Centralized telemetry ingestion
Automatic event correlation
Client and site context
Service and asset association
Time-aligned visibility
Alerts reflect real-world impact, not just device chatter.
Definitive context ends the "is it the ISP or the LAN?" debate.
A unified view from user experience all the way to the core network.
Consolidated health and dependency views in a single pane.
4-Way Monitoring runs on Vergepoints, on-site probes that emulate real user behavior to validate Quality of Experience. Vergepoints come as hardware, VM, or bare-metal deployments, so you can put eyes everywhere they're needed. Specialized sensors and agents (Path Probe, WebHealth, SNMP Scout, Techmate, and others) cover SNMP, Web, VOIP, LAN and WIFI, Firewall, SDWAN, Quality of Service, and Quality of Experience monitoring.
Learn About VergepointsWhen monitoring is fragmented, every ticket starts with a search. When all four directions are correlated, most tickets start with an answer. Engineers stop chasing ghosts. Clients stop hearing “we are looking into it.” The blame loop ends because the data is no longer ambiguous.
See your network the way it actually behaves, end to end.
